Die casting molds are fundamental components in precision manufacturing, allowing for the production of complex metal parts with remarkable accuracy and repeatability.

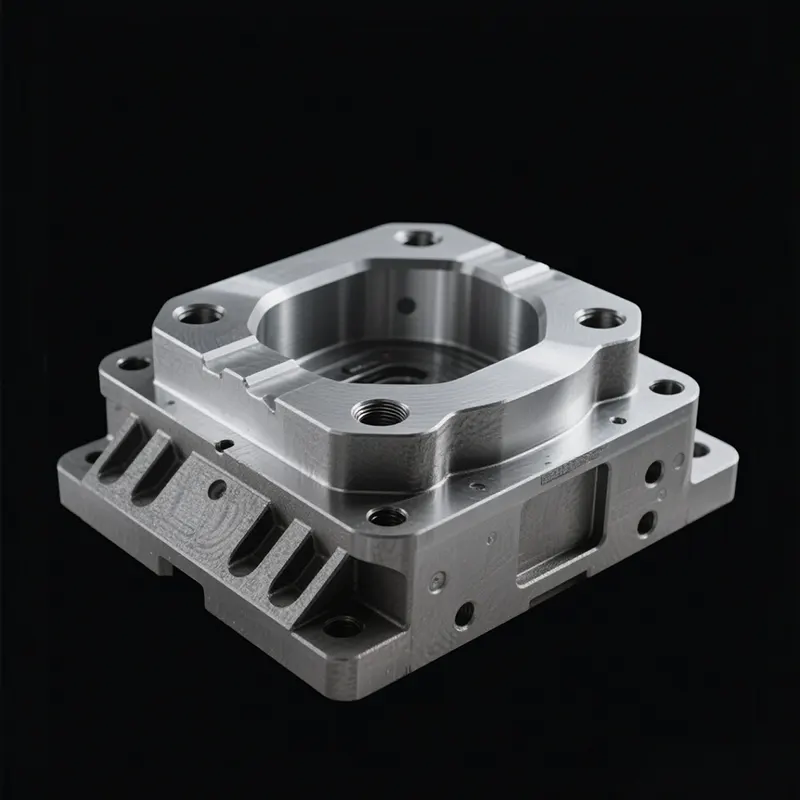

A die casting mold is essentially a specialized tool used to shape molten metal into desired forms under high pressure. The process requires meticulous design and engineering to ensure the final product meets exact specifications. The performance, longevity, and precision of a die casting mold directly influence the quality of the casted parts.
Die casting molds can be categorized based on their application and material type:
| Parameter | Specification | Details |
|---|---|---|
| Mold Type | Hot Chamber / Cold Chamber | Hot chamber molds are suitable for zinc, magnesium, and lead alloys; cold chamber molds are ideal for aluminum and copper alloys. |
| Material | H13 Steel, P20 Steel, or Stainless Steel | High-hardness, heat-resistant steels extend mold life and improve dimensional stability. |
| Surface Finish | Polished, Textured, or Coated | Polished surfaces reduce friction and enhance release, while textured finishes add aesthetic or functional patterns. |
| Size | Customizable | Depending on part size, mold dimensions can be scaled for small precision components or large industrial parts. |
| Tolerance | ±0.01 mm | Precision engineering ensures consistent accuracy, crucial for industries requiring tight tolerances. |
| Cooling System | Conformal or Straight Channel Cooling | Advanced cooling reduces cycle time and prevents defects caused by uneven metal solidification. |
| Expected Lifespan | 200,000–1,000,000 shots | Depending on material and maintenance, high-quality molds maintain performance over extended production runs. |
Die casting molds are not merely tools—they are investments in efficiency, quality, and product reliability. Choosing the right mold involves understanding both the metal being cast and the desired final product characteristics.
The die casting process relies on precision, speed, and repeatability, and the mold is at the heart of this operation. But how exactly does a well-designed die casting mold enhance efficiency across production cycles?
High Production Speed:
Unlike traditional casting methods, die casting molds allow metals to be injected at high pressure, enabling rapid solidification and shorter cycle times. This is particularly beneficial for industries like automotive manufacturing, where thousands of components are needed per day.
Dimensional Accuracy:
The rigid structure of a die casting mold ensures minimal distortion, producing parts that require little to no secondary machining. This reduces overall manufacturing costs and time.
Material Optimization:
High-quality die casting molds are engineered to minimize material wastage. By controlling flow channels, cooling patterns, and injection pressure, manufacturers can optimize metal usage without compromising part integrity.
Complex Geometries:
Die casting molds support intricate designs, undercuts, and thin walls that are difficult to achieve with other casting methods. This capability allows for lighter, more functional, and visually appealing components.
Durability and Maintenance:
Premium mold materials and coatings reduce wear and tear. Regular maintenance ensures molds deliver consistent performance, keeping production lines running efficiently and reducing downtime.
Automation Compatibility:
Modern die casting molds are designed to integrate seamlessly with robotic handling systems, automatic ejection mechanisms, and in-line quality inspection tools, making high-volume production faster and more reliable.
A mold that is designed for efficiency not only improves production speed but also ensures superior quality and cost-effectiveness. Choosing the wrong mold can lead to defects, wasted materials, and frequent downtime, emphasizing the importance of precision-engineered die casting molds.
Choosing a die casting mold involves more than simply picking a size or material. It requires careful evaluation of the production requirements, metal characteristics, and expected mold lifespan. Here are key considerations for selecting the right mold:
Alloy Compatibility:
Different metals have varying melting points, flow characteristics, and thermal expansion rates. The mold must be compatible with the intended metal to prevent premature wear or deformation.
Production Volume:
High-volume manufacturing demands molds that can withstand millions of cycles without significant wear. Low-volume projects may allow for less expensive mold materials but still require precision to maintain quality.
Cooling Design:
Efficient cooling channels are essential for maintaining dimensional stability and reducing cycle times. Advanced cooling systems such as conformal cooling provide uniform heat distribution and faster production rates.
Surface Finish Requirements:
Polished molds are ideal for smooth surfaces, while textured or patterned molds can provide specific functional or aesthetic features. Surface treatment also affects mold release efficiency.
Tolerance and Precision:
Industries like aerospace and medical device manufacturing require tight tolerances, often within ±0.01 mm. Selecting molds that can achieve these tolerances is critical for product reliability.
Maintenance and Serviceability:
Molds should be designed for easy cleaning, repair, and maintenance. Interchangeable inserts and modular components can reduce downtime and extend mold life.
Cost vs. Quality:
While high-quality molds have higher upfront costs, they often provide superior performance and longer service life, ultimately reducing overall production costs.
By carefully evaluating these factors, manufacturers can ensure the mold they choose will meet production goals while maintaining part quality and reducing long-term costs.
Q1: How long does a die casting mold typically last?
A1: The lifespan of a die casting mold depends on the material used, production volume, and maintenance practices. High-quality H13 steel molds with proper cooling and maintenance can last between 200,000 and 1,000,000 shots. Regular inspections and timely replacement of worn components ensure consistent performance and reduce unexpected downtime.
Q2: Can die casting molds be repaired if damaged?
A2: Yes, die casting molds can be repaired depending on the type and extent of damage. Common repair methods include welding, polishing, or replacing inserts. Preventive maintenance and careful operation significantly extend mold life and minimize the need for extensive repairs. Advanced mold coatings also enhance durability and reduce wear.
Selecting a reliable partner for die casting mold production is critical. Huantong combines decades of expertise, advanced material selection, and precision engineering to deliver molds that meet the highest industry standards. Every mold is designed for durability, efficiency, and consistent quality, ensuring that your production line operates smoothly and cost-effectively.
With Huantong’s commitment to precision, customization, and exceptional service, businesses gain access to high-performance molds that enhance manufacturing efficiency and product quality. For inquiries, detailed specifications, or to discuss your custom mold requirements, contact us today and discover the difference of partnering with a trusted die casting mold manufacturer.
